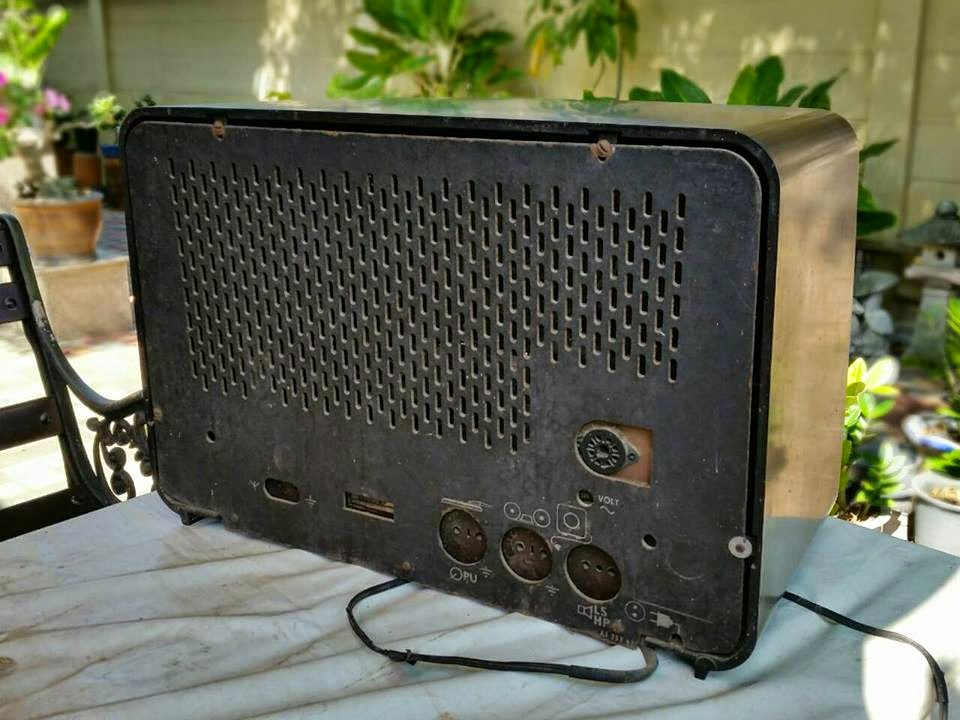

Autophon AG;: 843 Switzerland



Autophon AG;: 843 [Radio] ID = 12758 933x615

Select picture or schematic to display from thumbnails on the right and click for download.

For model 843 ohne Telefonrundspruch, Autophon AG; Solothurn

Country:  Switzerland	Manufacturer / Brand:  Autophon AG; Solothurn
Year: 1946–1950	Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes	4: ECH21 ECH21 EBL21 AZ1

Principle	Super-Heterodyne (Super in general); ZF/IF 471 kHz
Wave bands	Broadcast, Long Wave and Short Wave.
Details
Power type and voltage	Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org	Model: 843 [ohne Telefonrundspruch] - Autophon AG; Solothurn
Material	Wooden case
Dimensions (WHD)	500 x 320 x 250 mm / 19.7 x 12.6 x 9.8 inch
Notes	7300/20296a*
Net weight (2.2 lb = 1 kg)	7.1 kg / 15 lb 10.2 oz (15.639 lb)
Price in first year of sale	616.00 SFr
Collectors' prices
External source of data	E. Erb 3-907007-36-0
Source of data	Radiokatalog Band 2, Ernst Erb
Circuit diagram reference	Die Tungsram-Tabellen führen das Modell auf.
